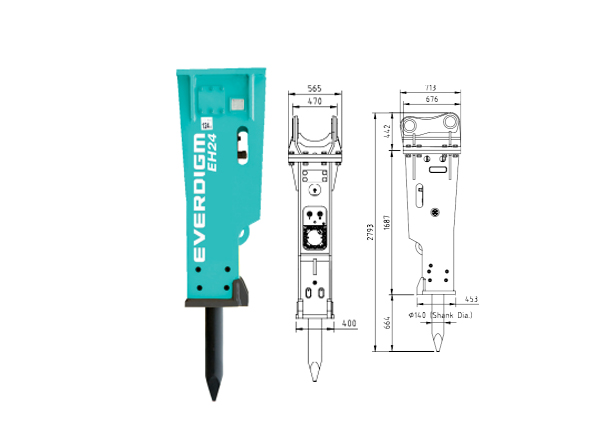

EH 24 Hydraulic Breakers

SPECIFICATION

Bracket version Box type
Working weight kg 1,695
Required oil flow lpm 130 ~180
Operating pressure bar 160 ~ 180
Blow frequency bpm Low speed 320 ~ 450
High speed 420 ~ 580
Impact energy Joule Low speed 3,300
High speed 2,500
Chisel diameter mm 140
Applicable Carrier Weight ton 20 ~ 27
